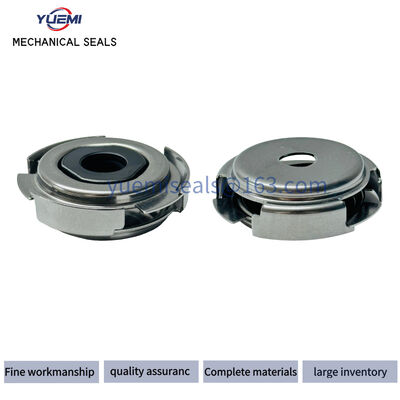

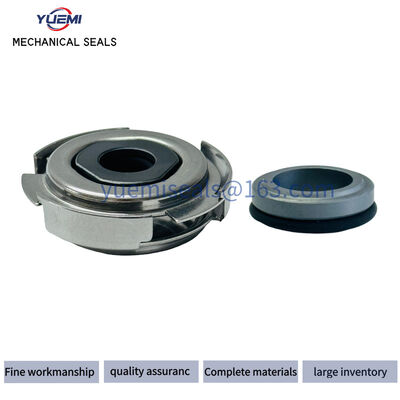

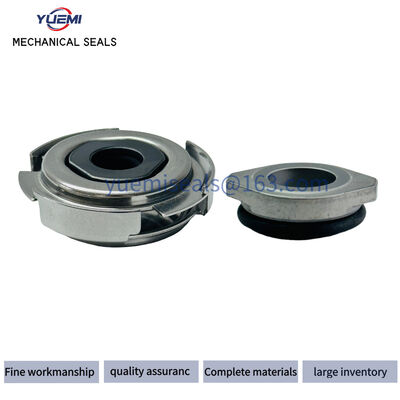

CM Granford Mechanical Seal Cm1 3 5 10 15 20 Granford Pump Mechanical Seal

Shaft Size 12mm Horizontal Type CM1/3/5 Pump (Material:SiC/SiC/Viton)
Shaft size 16mm Horizontal Type CM10/15/25 Pump (Material:SiC/SiC/Viton)

Suitable for CR, CRN, and CRI series Pumps

Description:
Gr0ndf0s CR Replacement Cartridge Mechanical Seals
Standard Shaft Size:12mm,16mm

Operating Range:
Cartridge Pump Seal for Grondfos(mechanical seal, pump seal)
Description:
Equivalent with type H.
Shaft size: 12MM,16MM
Balanced, cartridge O-ring seal unit with rigid torque transmission system
This seal type is assembled in a cartridge unit which makes replacement safe and easy.
Similar to the type D seal, the balancing makes this O-ring seal type suitable for high-pressure applications.
Material:
Rotary Ring: SiC/TC
Stationary Ring: SiC/TC
Elastomers: NBR/Vit
Springs: SS304/SS316
Metal Parts: 410S/SS304/SS316
Mediums: water, oil, sewage, weak acid, weak alkali, and other weak corrosive mediums.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
